The following are the latest electronic solutions developed by Realizer:

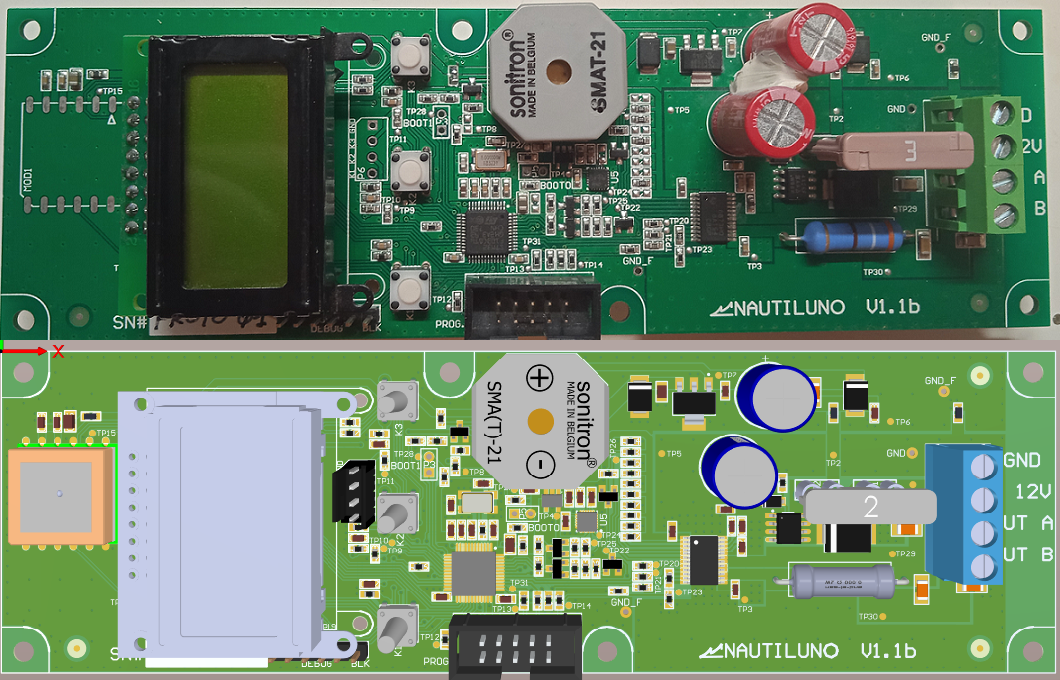

Boat Tiller Auto-Pilot

• 9-Axis MEMS
• Highly Integrated design
  • High testability and reproducibility
  • Actuator overcurrent protection
  • IEC 60945 certification pending
  • Optional GPS

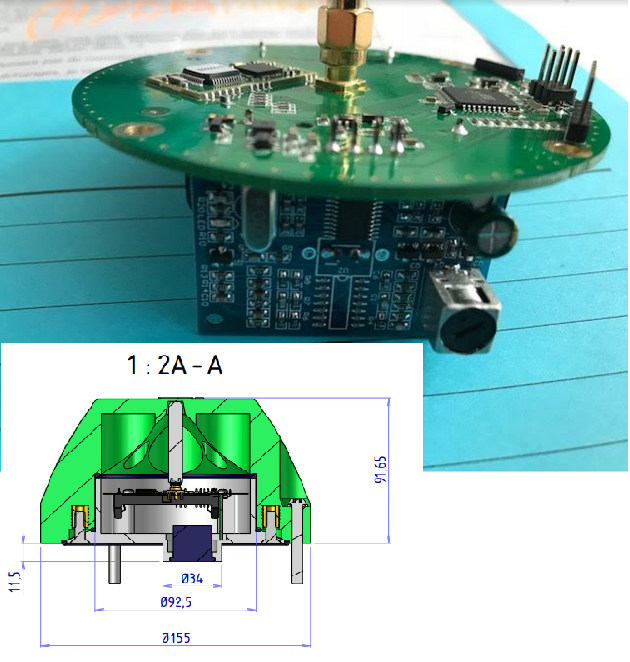

Glass bottle bank monitoring

• Sealed packaging
• Lora communication
• Ultrasonic filling measurement
• Ultra low Power
• Allows time and logistics savings

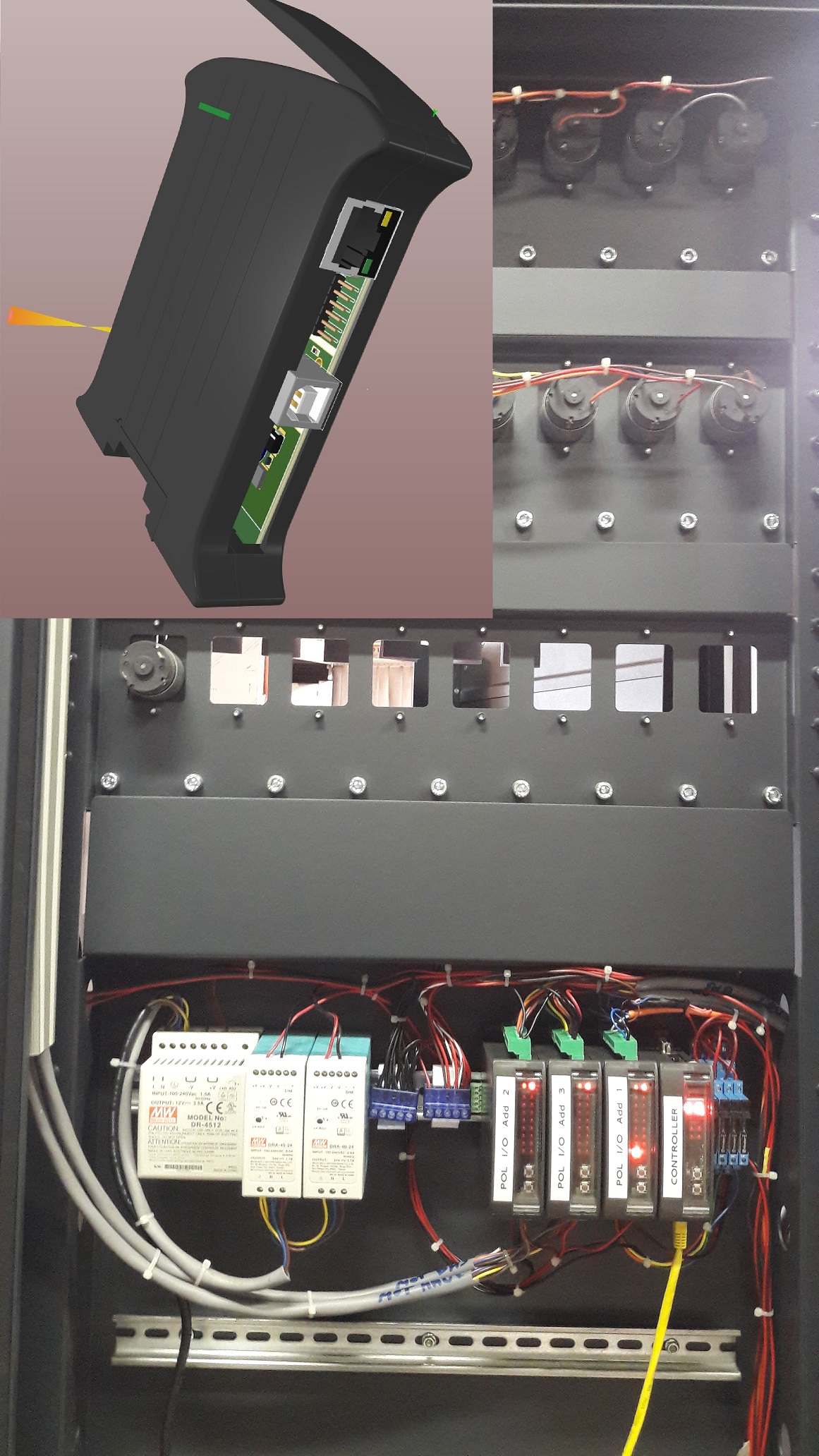

Access wristband dispenser custom PLC

• Din rail based
• Relays modules with load current measurement
• Inputs modules
• Processing module with USB/Ethernet/RS232 interfaces
• Wristband Optical detection
• RFID reader interfacing
• CAN Bus for modules communication
• Full project handling firmware,software and hardware

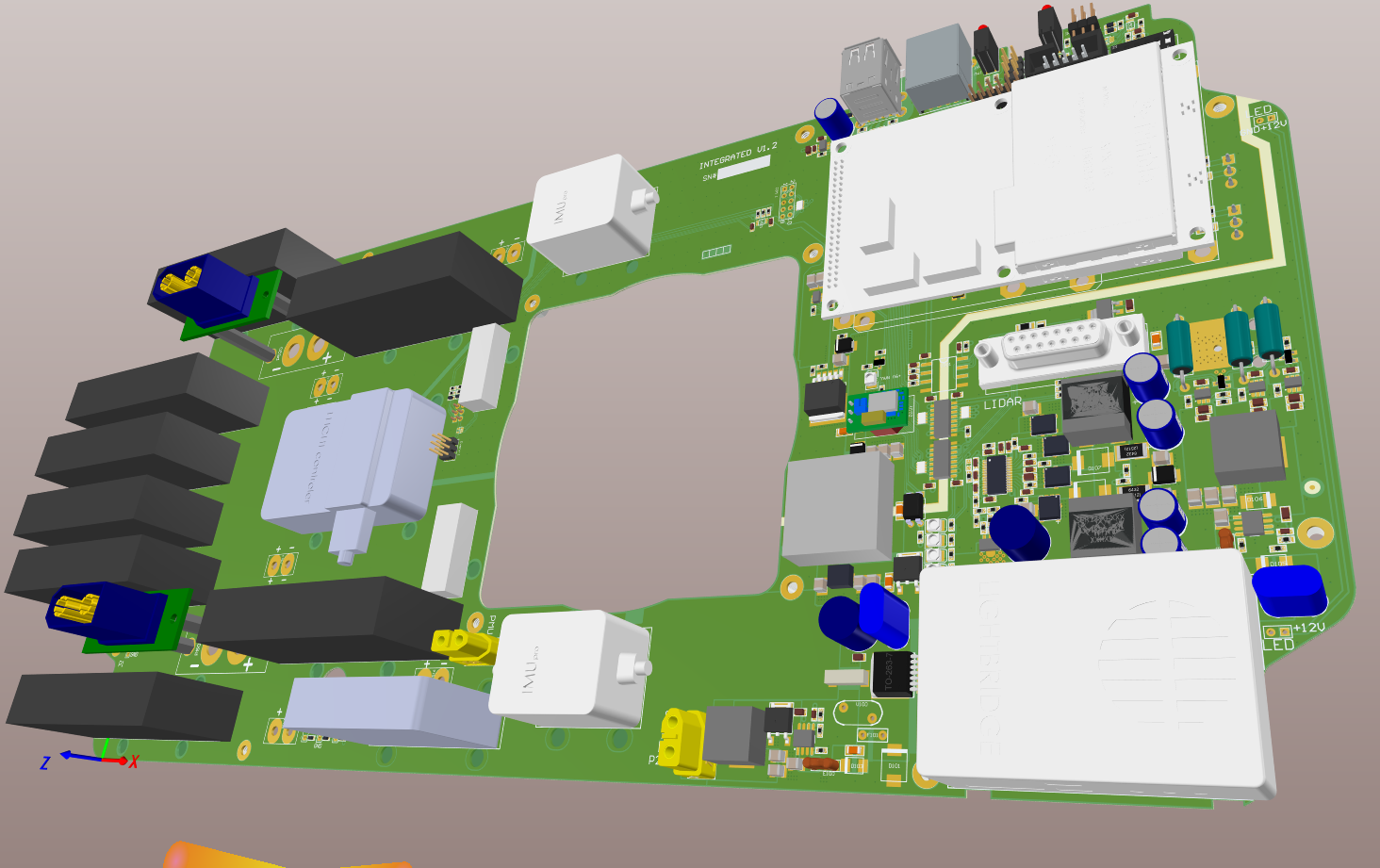

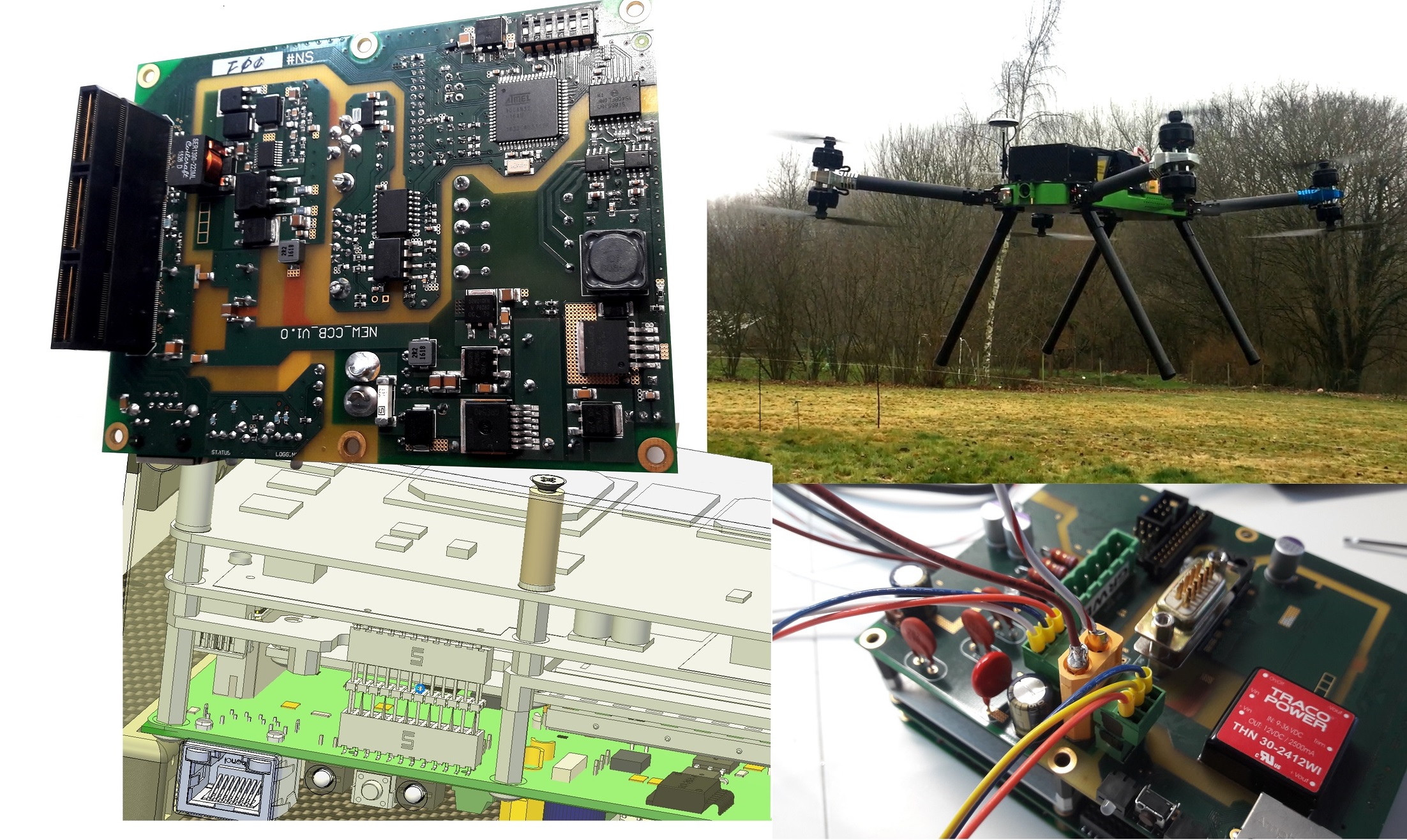

Building Survey Drone Interface Board MK II

• Integrated to an Applanix/Trimble GNSS Stack
• Lidar interfacing
• Isolated power supplies
• Isolated CAN Bus
• Integrated high power led status
• Cabling reduction
• Brings a reliable and integrated solution to the customer

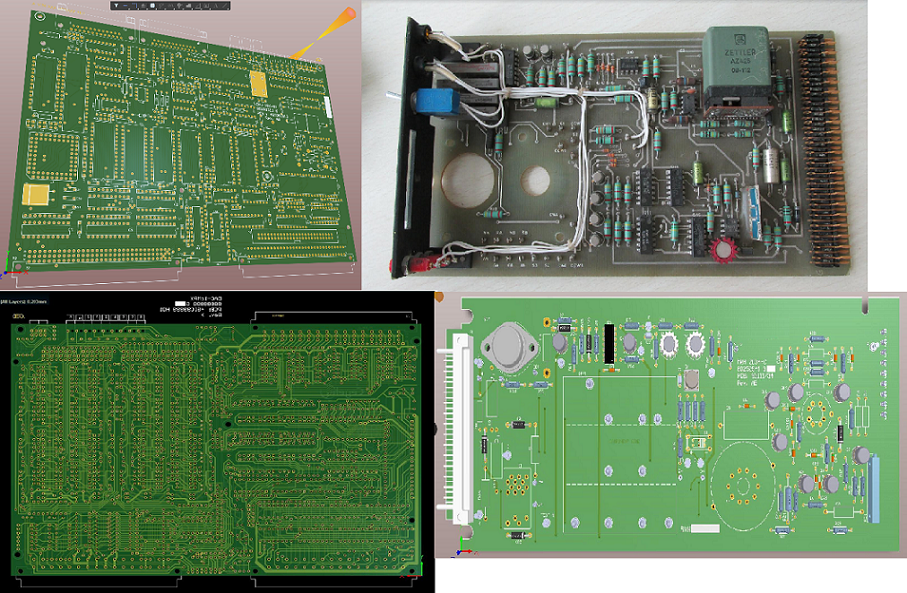

Power Plant boards reverse engineering

• Reverse engineering of more than 20 boards
• Parts obsolescence management
• Schematics unavailability handling
• Various boards generation handling
• Permit plant availability and maintainability improvement

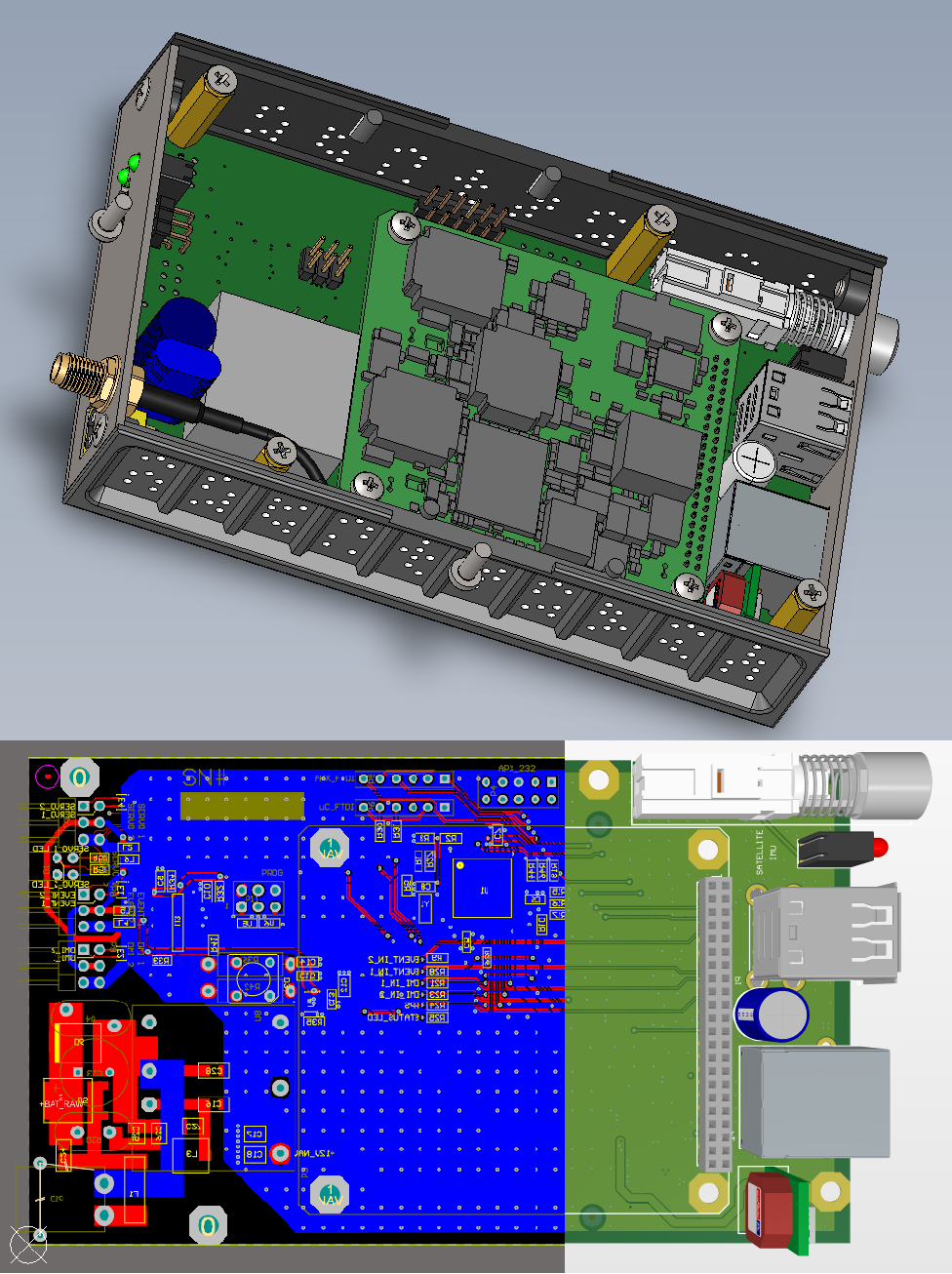

Photogrammetry drone Interface Board

• Integrated to an Applanix/Trimble APX15 GNSS Stack
• Camera Sync. interfacing
• IMU / Satellites go/no go led indicator
• Spares Servos and DMI connections
• Isolated power supplies
• Brings a reliable and integrated solution to the customer

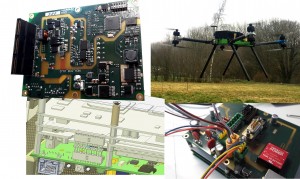

Building Survey Drone Interface Board

• Integrated to an Applanix/Trimble GNSS Stack
• Lidar interfacing
• Isolated power supplies
• Isolated CAN Bus
• Brings a reliable and integrated solution to the customer

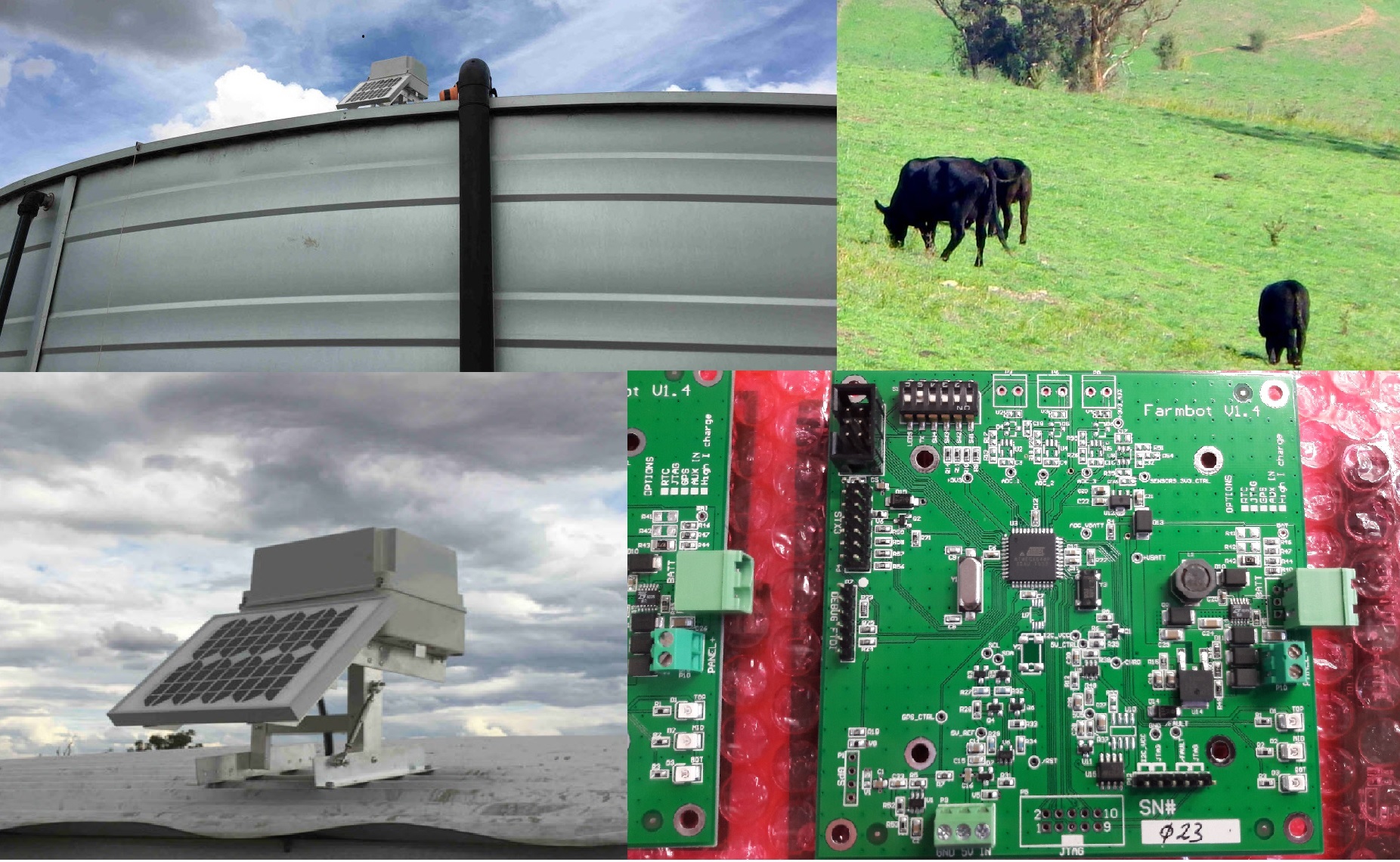

Farm Water monitoring system

• Lithium Battery solar charger
• Globalstar Satellite Modem
• Reduce animal suffering significantly
• Save farmers a lot of time and money
• Deployed in very remote Australian farms

Pictures from http://farmbot.com.au/ used with permission

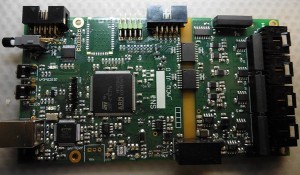

USB Load cells acquisition board

• 4 channels 16 bit simultaneous sampling
• 5 KV front end isolation
• ARM processor
• Fully programmable conditioning front end
• Bluetooth and Battery charger options

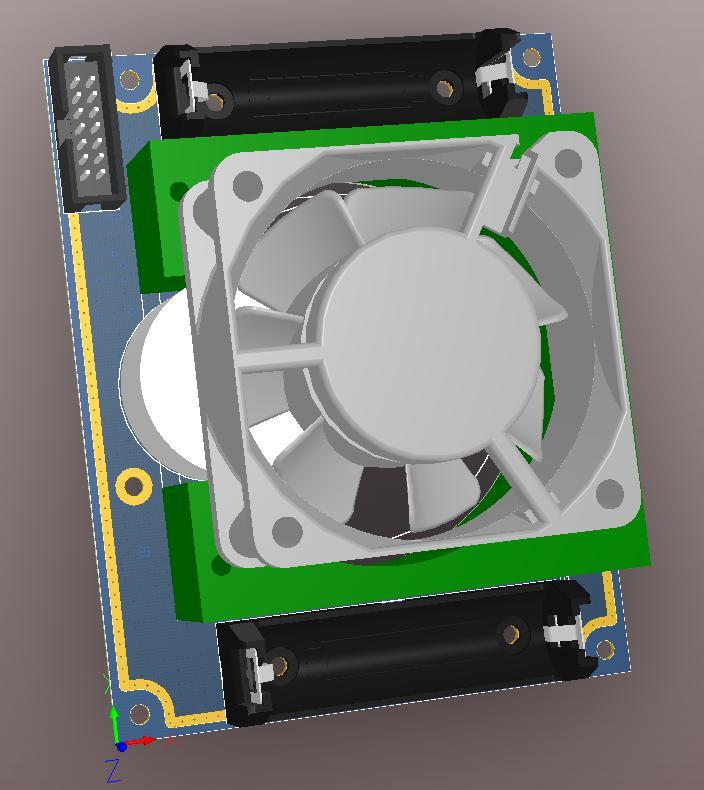

Electrochemical Gaz Sensor conditioning Board

• Humidity sensor
• Temperature Sensor
• Battery backup to avoid sensor warm-up issues
• Gaz Sensor aging test
• Electronic Serial Number

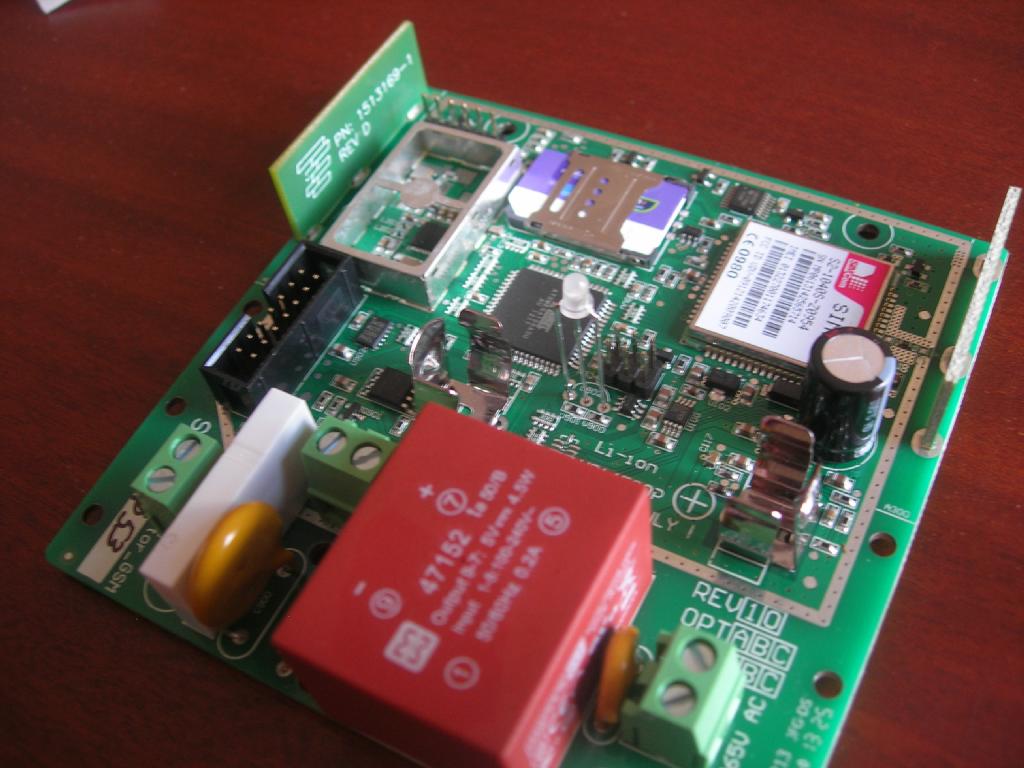

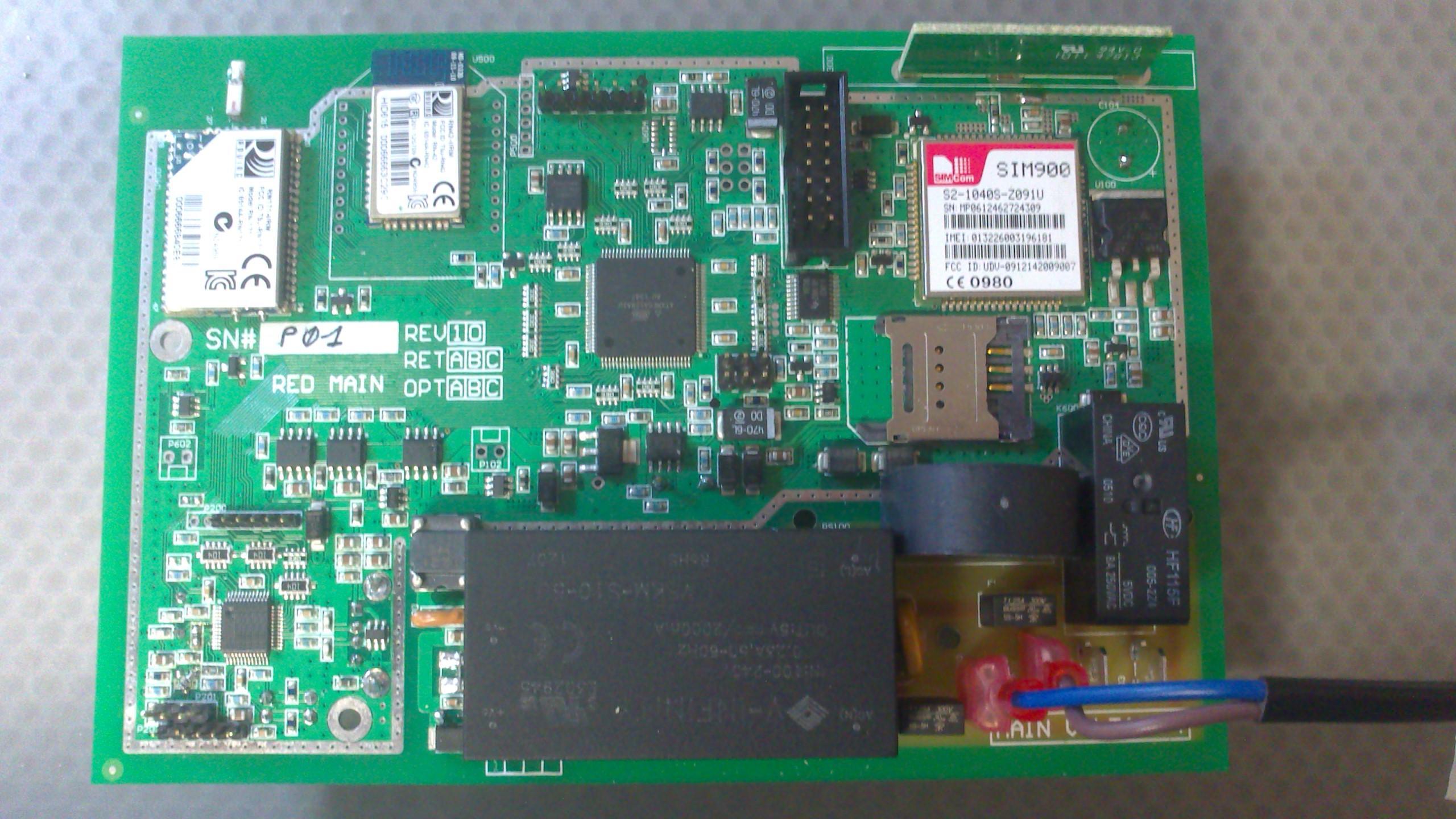

 Low cost GSM/GPRS Beacon

•  ISM radio link
•  Rechargeable Li-ion battery based UPS
•  Alarm relay
•  Dallas iButton reader
•  PC connection port
•  Tests points for production quality control

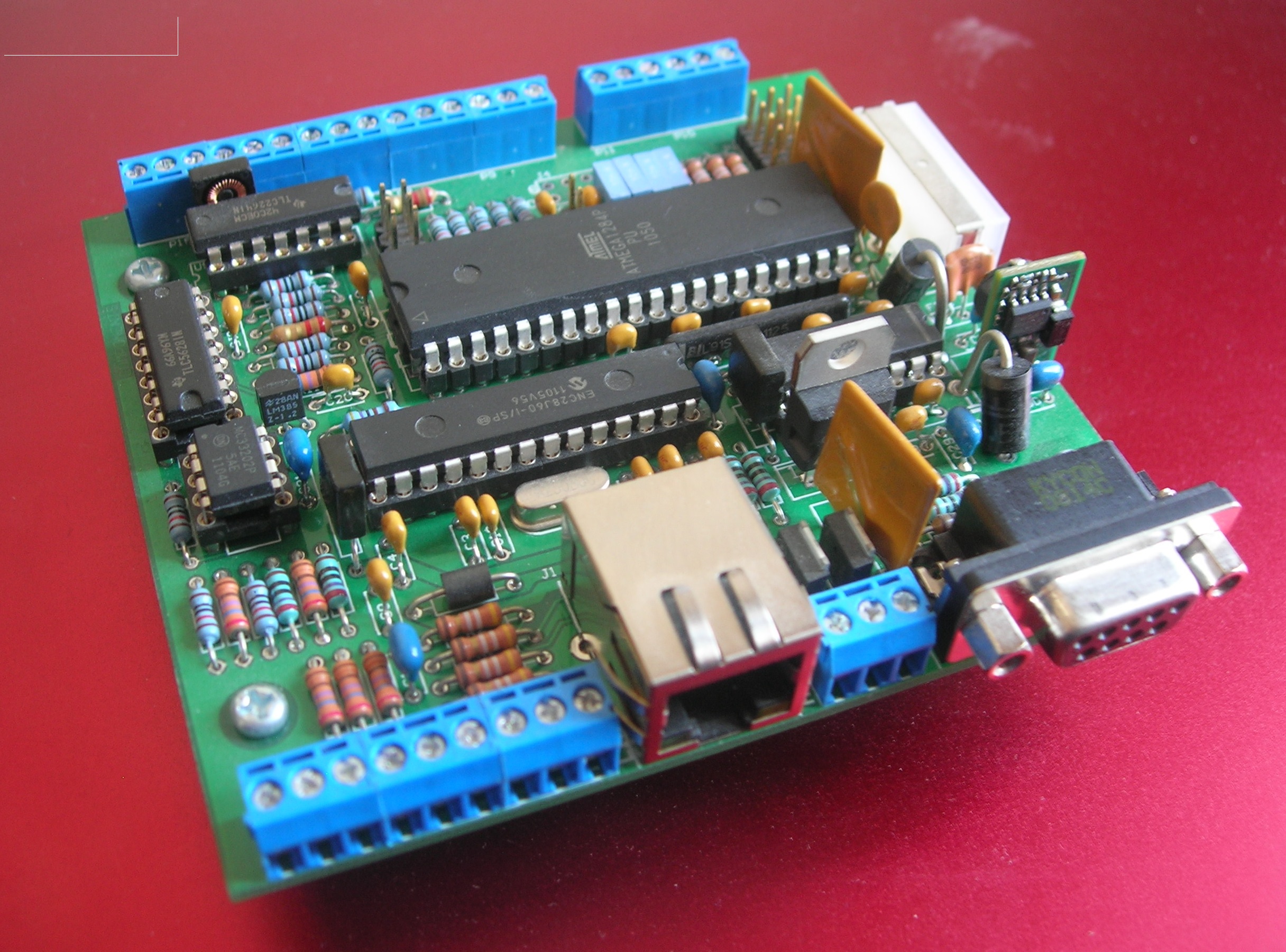

 Process controller

•  Ethernet communication port
•  RS232 communication port
•  Offset programmable ADC inputs
•  Debounced switch inputs
•  High voltage DAC outputs
•  Thru-Hole components at customer request

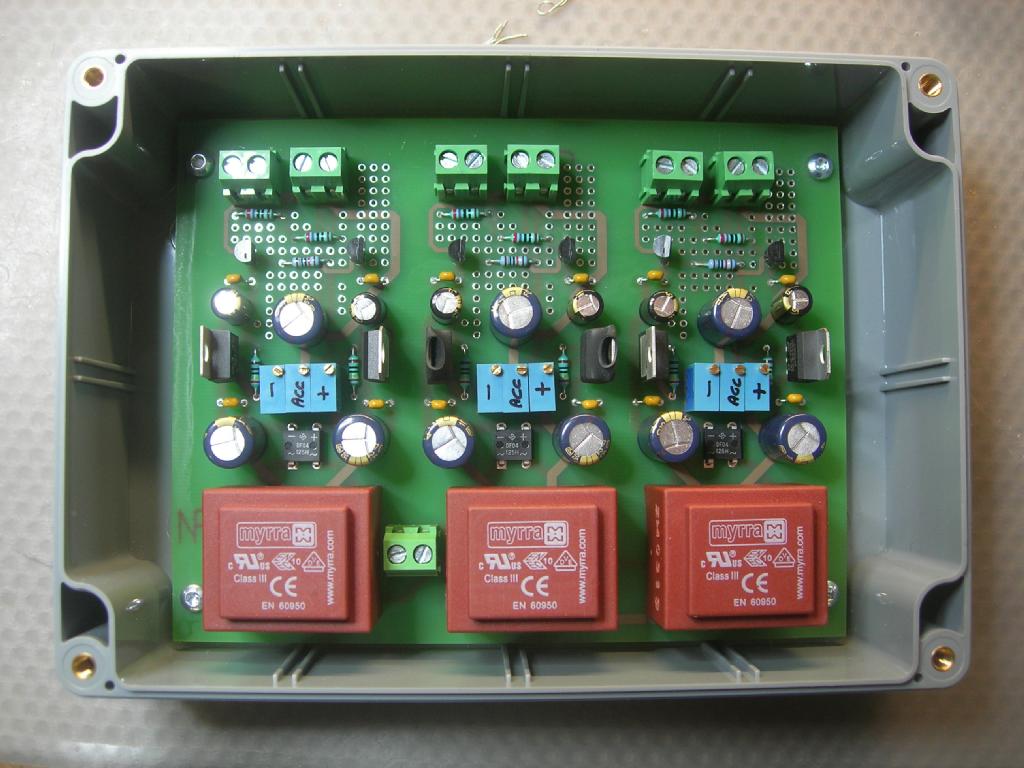

3 Axis Motion Platform isolation interface

•  short delivery of one week.













Disinfection process controller

•  Wi-Fi access
•  GSM/GPRS access
•  Aerosol generator current sensor
•  USB driver AES encrypted data  logging







Previous projects





• Firearm flame simulator (special effect)
• DMX to servo motors controller
• Pressure sensor interface (Honeywell sensors)
• Igniter sequencer (special effect)
• CCD array conditioning/PC interface (Hamamatsu sensors) http://opticalengineering.spiedigitallibrary.org/article.aspx?articleid=1089111
• Logistic truck embedded beacon (XT65 Siemens based)
• Shutter controller (high speed photography)
• Tank management beacon (TC65i Cinterion based)
• Railway train positioning beacon (Telit based)
• Medical diagnostic device (Gumstix based) http://zreader.info/
• Indoor positioning system (ISM based)
• Antenna design for gasoline anti-theft system
• Pharmaceutical production setup vibration data logger (ADI sensors)
• Medical system display ISM band cable replacement (Jennic based)
• Human body Magnetic, Angular Rate and Gravity sensor system
